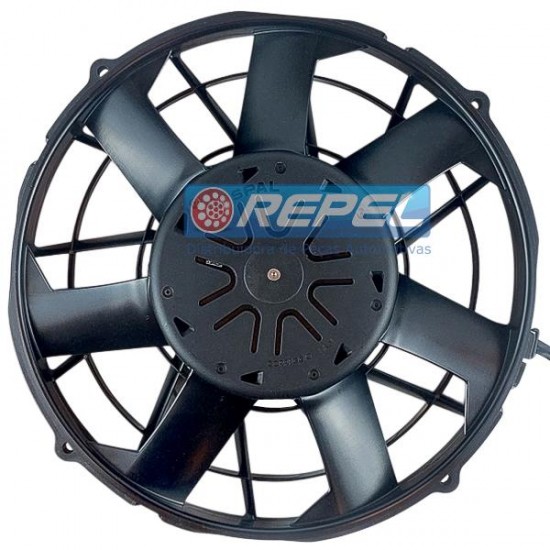

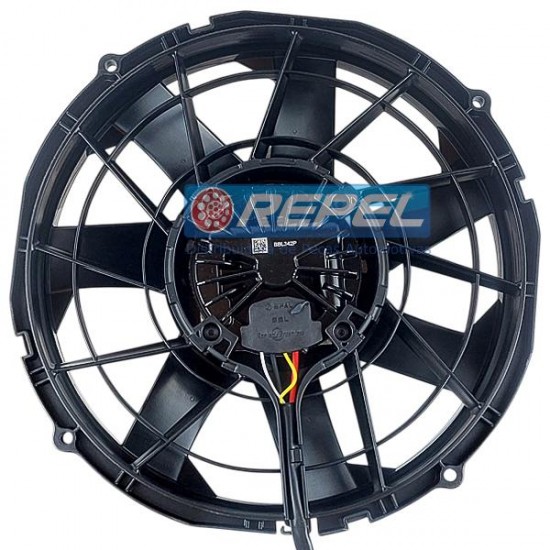

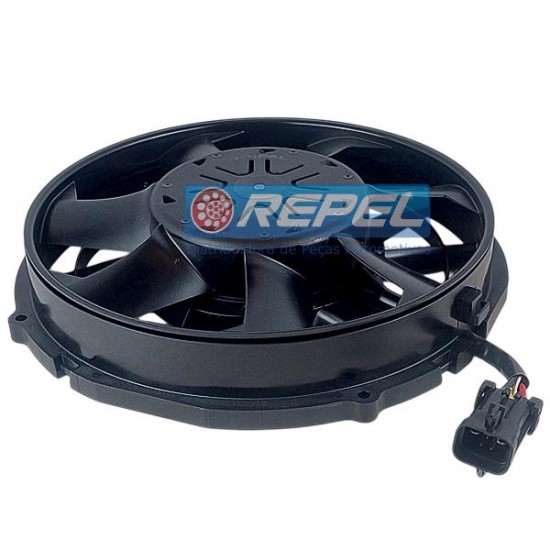

Eletroventilador Axial Ar Condicionado e Resfriador 24V Aspirante Gruuner Transbordos e Caminhões . ORIGINAIS : Grunner GR-2-07787-1R / Grunner GR-2077871R /  GR-2-07787-1R / GR-2077871R

Tensão: 24 volts
Tipo: Aspirante
Diâmetro Hélice: 12 Polegadas 305mm
Medida Externas: 332mm
Espessura: 76.65mm
Fluxo Ar: 1804 CFM 3674 m3/hr
Consumo : 18.8 - 23.5 amperes - 451.2 - 564 watts
Max fan speed rpm 4110
Min fan speed rpm 900
Sound pressure level dBA 78 - at 1 m
Weight kg 2,20
Operating supply voltage range V 16 .. 32 at the Drive Connector
Supply voltage to reach max speed V 26 .. 32 at the Drive Connector
Operating ambient temperature range °C -40 .. -95
Speed derating threshold °C +85 (*)
Storage temperature range °C -40 .. +120
Lifetime h up to 40000 hours depending on mission profile
Time from 0 rpm to max speed s 15
Load dump protection ( Pulse 5b ) V 65 - Pulse peak voltage ( Us* ) - ISO16750 - 2:2010
Reverse polarity protection ISO 16750-1 functional status class C - device fully functional after connecting the polarity
